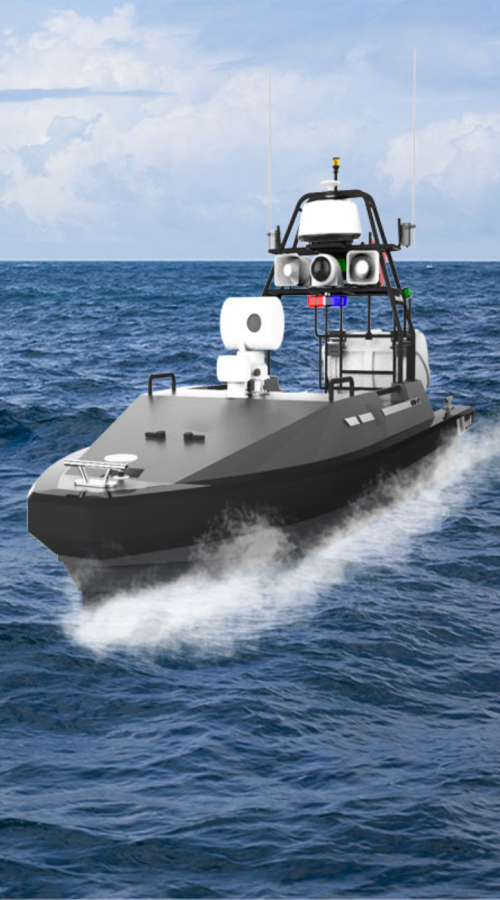

USV-M75

Uncrewed Patrol Vessel

Dedicated for Surveillance & Rescue

Integrated with comprehensive searching, data, communication and rescue modules, m75 is an ideal smart vessel for maritime surveillance and rescue.

Specification



Dimension(L)5.3 m*(W) 1.72 m*(H)2.85 m
Weight1350 kg
Payload50 kg
Draft0.42 m
PropulsionWater-jet Thruter
Communication Range15 km
Max. Speed26 kn (13.4 m/s)
Endurance＞120 nm
Survival Sea StateSS-4

Survival Equipment Parameters
Crew Capacity6 Persons
Package Dimension0.46 m * 0.8 m
WeightAbout 35 kg
Life Raft Dimension1.82*1.82*1.2 m
Items in Life RaftFreshwater, food, medicine etc
Dedicated for Surveillance and Rescue Integrated with comprehensive searching, data, communication and rescue modules, m75 is an ideal smart vessel for maritime surveillance and rescue.

Outstanding Performance at Night

The photoelectric pod enables M75 to search at night and take high resolution photos for evidence.

M75 can be deployed with rescue equipment like ejectable life-raft, remote controlled life lifebuoy to conduct rescuing missions in different water environment.



















Ultra Long Communication Distance

Using LTE communication, M75 can communicate with the base station within 15km and send back videos and data in real-time.





















Quick emergency response

M75 runs on a high-speed water jet propeller that can reach a maximum speed of 30 knots,  enabling it to respond to emergencies promptly.























Fleet Operation

M75 can autonomously team up to conduct massive-scale search & rescue missions to locate victims .


The multi-screen control base station can be deployed in a shore-based command center, on a mothership, or in a moving vehicle, depending on the scenario.
