USV-L25
Multi Function Marine Survey USV
Multi Function Marine Survey USV
The L25 USV can carry up to 200kg of hydrographic & geophysical instruments to
conduct multi-purposed physical oceanographic surveys and biological environment monitoring on the deep sea.
Specification
Hull Material | Aluminum Alloy |
| Dimension | (L)7.5 m *(W)2.8 m*3m（H） |
| Weight | 2400 kg |
| Payload | 200 kg |
| Draft | 40 cm |
| Propulsion | Propeller × 2 + Outboard Diesel Engine 50HP × 2 |
| Collision Avoidance System | Side light/AIS/Navigation Radar/4*HD Camera |
| Communication Range | >10 km |
| Max. Speed | 10 knots |
| Endurance | 65hr @ 4kn |
| Video Monitoring | Yes |
| Multi Missions | Yes |
| Automatic Paload Lifter | Yes |
| Operation Sea State | SS 3 |
Outstanding Payload Capacity
Wider deck, bigger payload, supporting multiple equipment work simultaneously for underwater inspection, hydrography survey and oceanography survey.
Advanced Design for Easy Configuration
- Small A-frame and winch support towing survey, cable length up to 200 meters;
- Foldable lifter protects instruments wet ends and offers greater payload capacity.

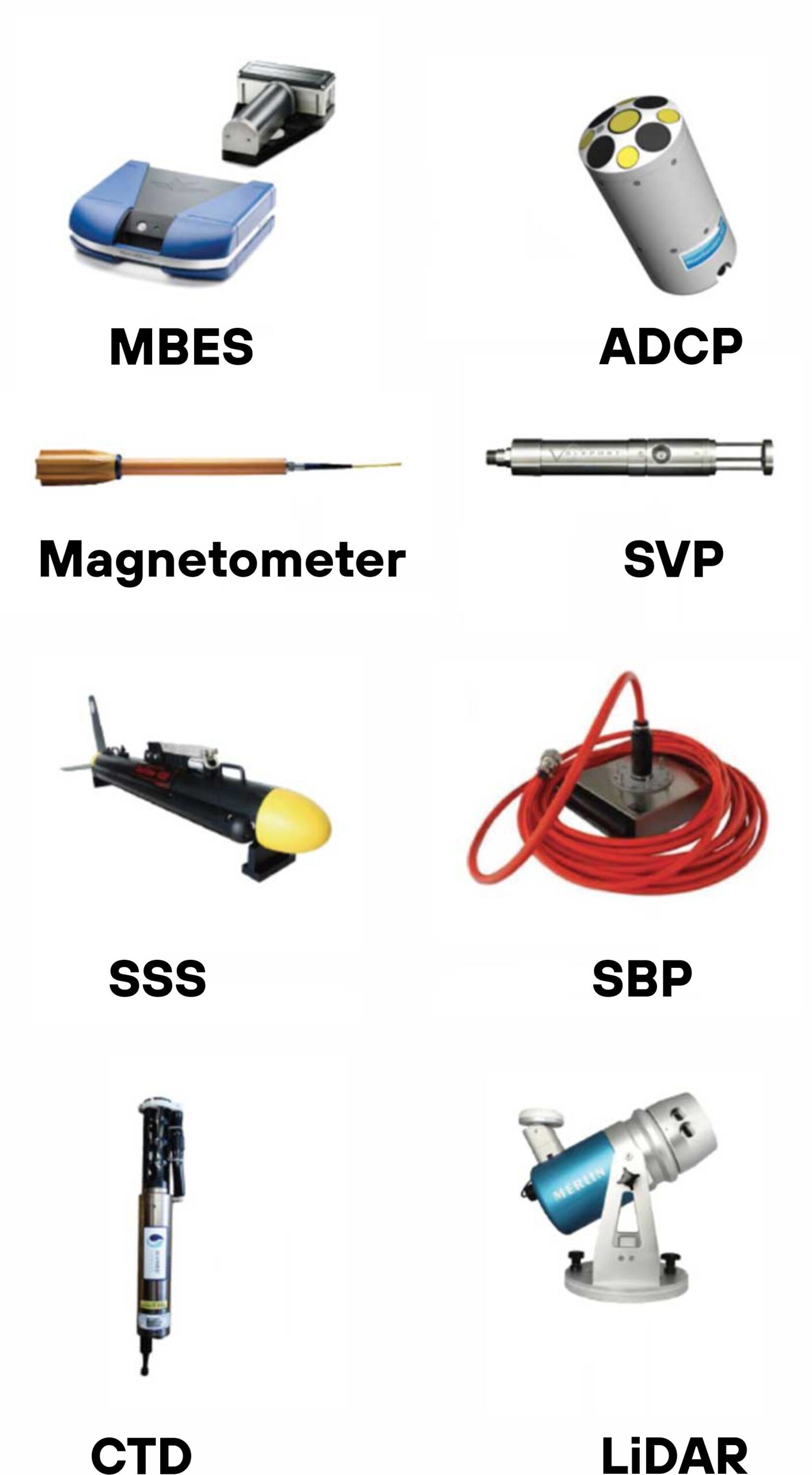

No. |
Equipment Name |
|---|---|
1 |
MBES (Multibeam Echo Sounder) |
2 |
ADCP (Acoustic Doppler Current Profiler) |
3 |
Magnetometer |
4 |
SVP (Sound Velocity Profiler) |
5 |
SSS (Side Scan Sonar) |
6 |
SBP (Sub-Bottom Profiler) |
7 |
CTD (Conductivity, Temperature, Depth Sensor) |
8 |
LiDAR (Light Detection and Ranging) |
