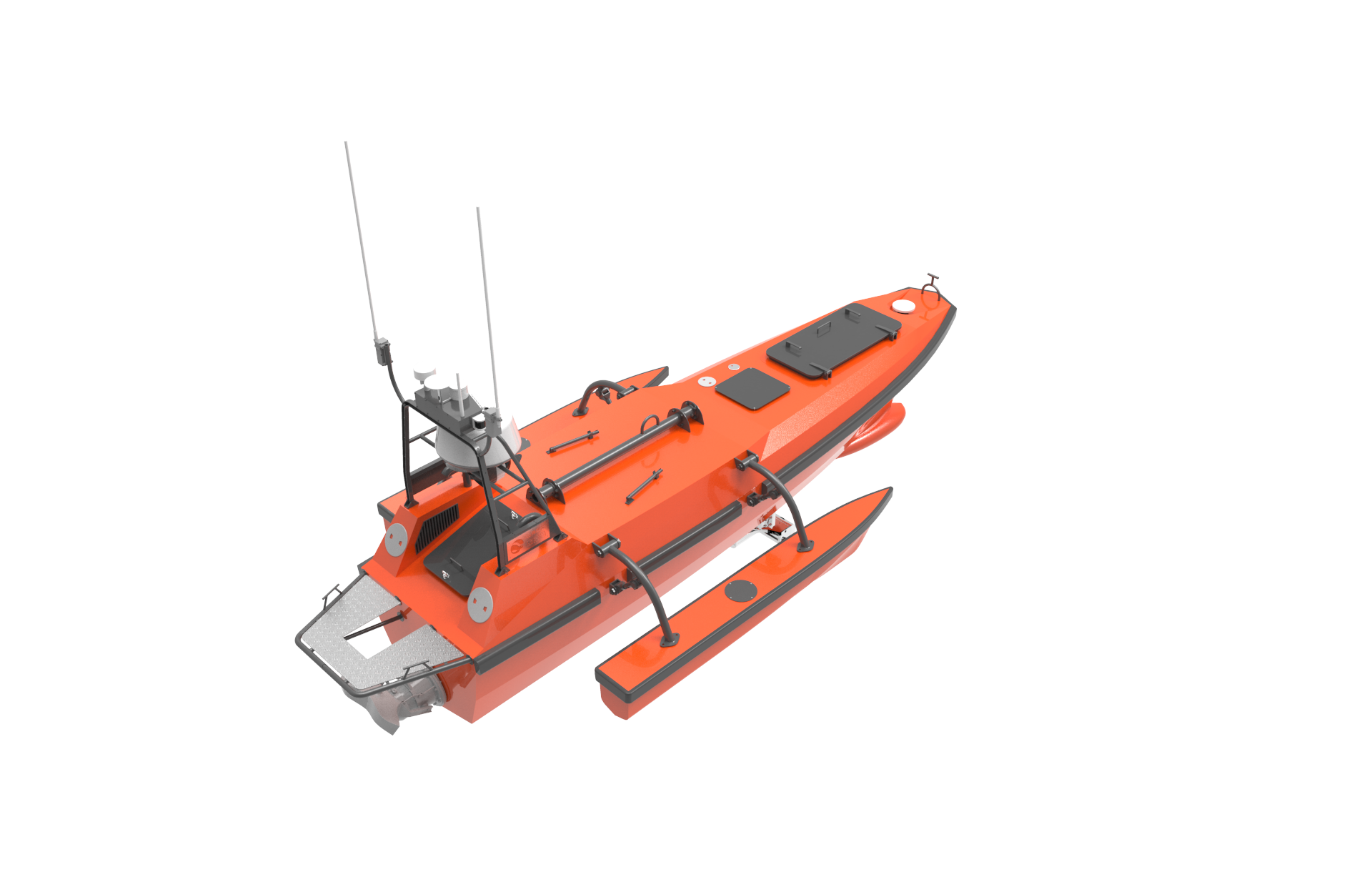

USV M-80

Autonomous Survey Boat

Long endurance multi-functional platform for hydrographic surveying




Specification

Hull MaterialAluminum
Dimension(L)5.65 m *(W)2.4 m *2.9m(H)
Weight1600 kg
Payload200 kg
Draft45 cm
PropulsionElectric Motor
Collision AvoidanceMillimeter Wave Radar
Communication Range>10 km
Max. Speed 10 knots
Survey Speed5-6 knots
Endurance200 nm
Video MonitoringYes
Multi MissionsYes
Automatic Paload LifterYes
Operation Sea StateSS 3
Autonomous Survey Boat Long endurance multi-functional platform for hydrographic surveying











Hydrographic Unmanned Surface Vehicle

  • The USV can sail 50 hours continuously with a 350 kg (gallon liter) fuel tank.
  • The USV can sail up to 12kn/s with a high power water-jet propeller.


Better protection to equipment

Wider deck, bigger payload, supporting multiple equipment work simultaneously for underwater inspection, hydrography survey and oceanography survey.

Intelligent collision avoidance

  • Both the USV and the survey instruments are operated by the base station. Navigated by the GNSS positioning system, the USV can autonomously conduct pre-programmed multi-purpose surveying missions and send back data in real-time.
  • Operators can also control the USV manually within a distant of 2 km by using a remote controller.

Intelligent collision avoidance

Deployed with a 4G radar, an HD camera and a LiDAR, the M80 USV gives an excellence performance in collision avoidance.

User can observe water environments using the real-time video feed to better avoid obstacles when operating in manual mode.
